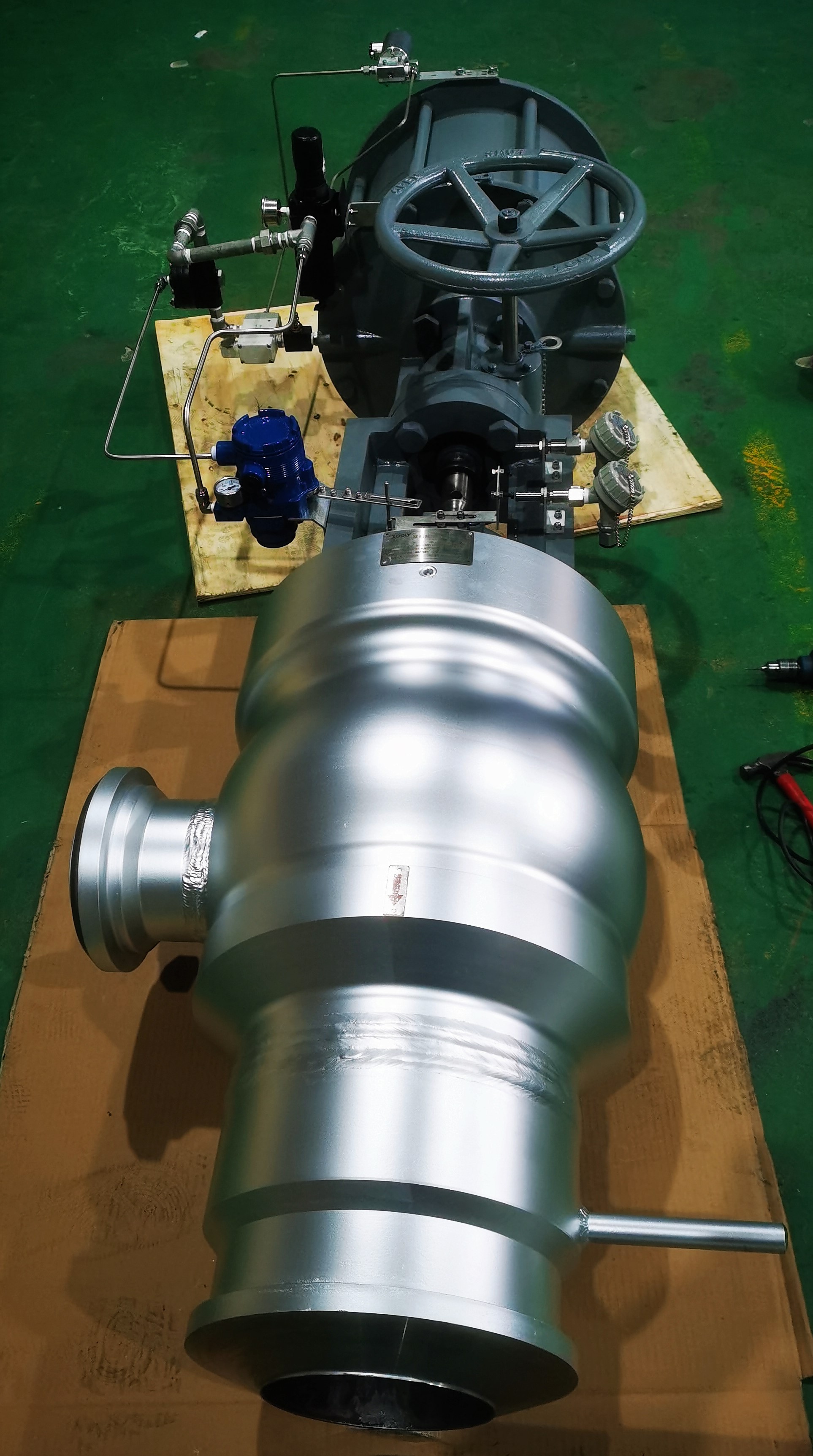

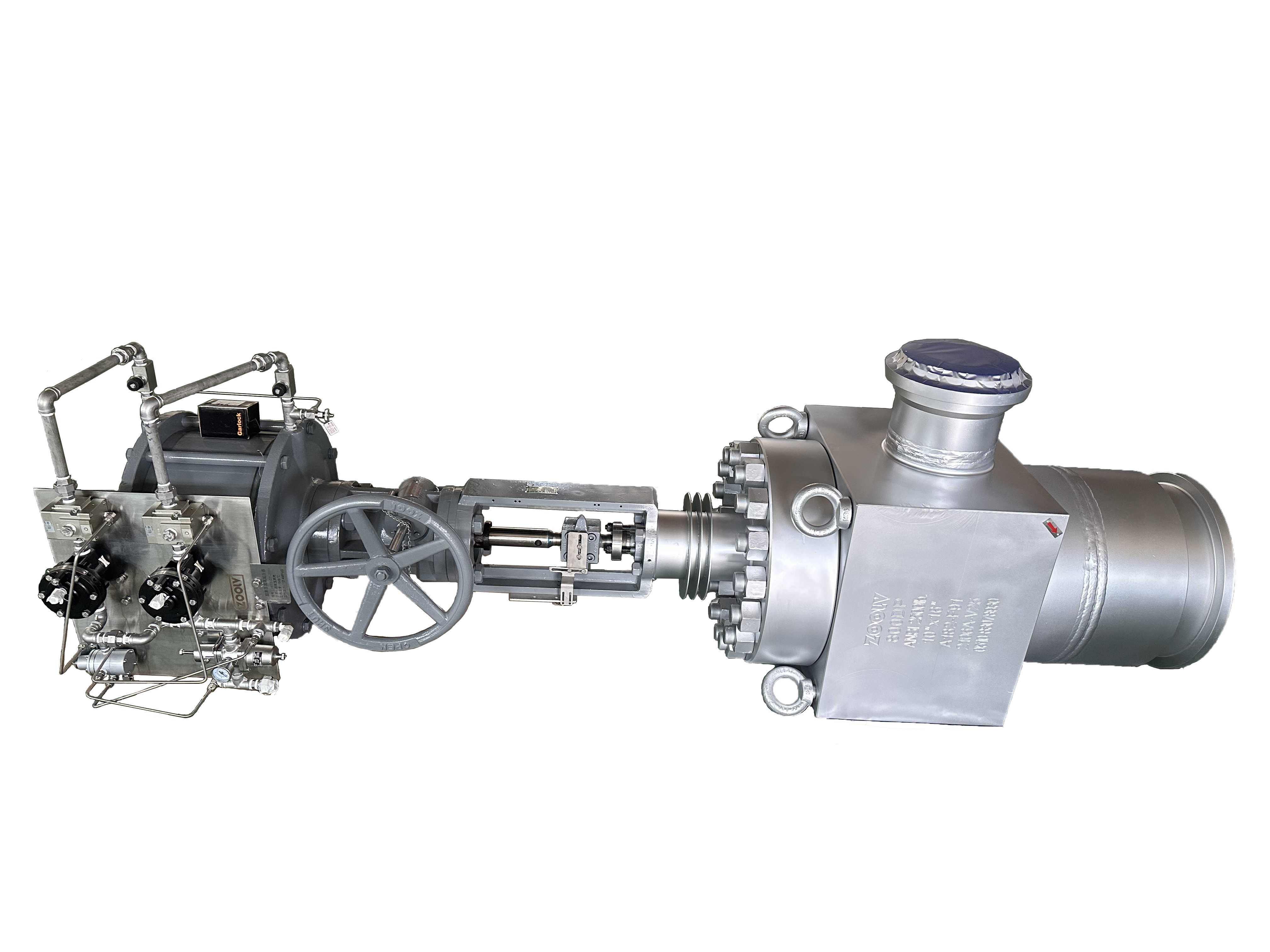

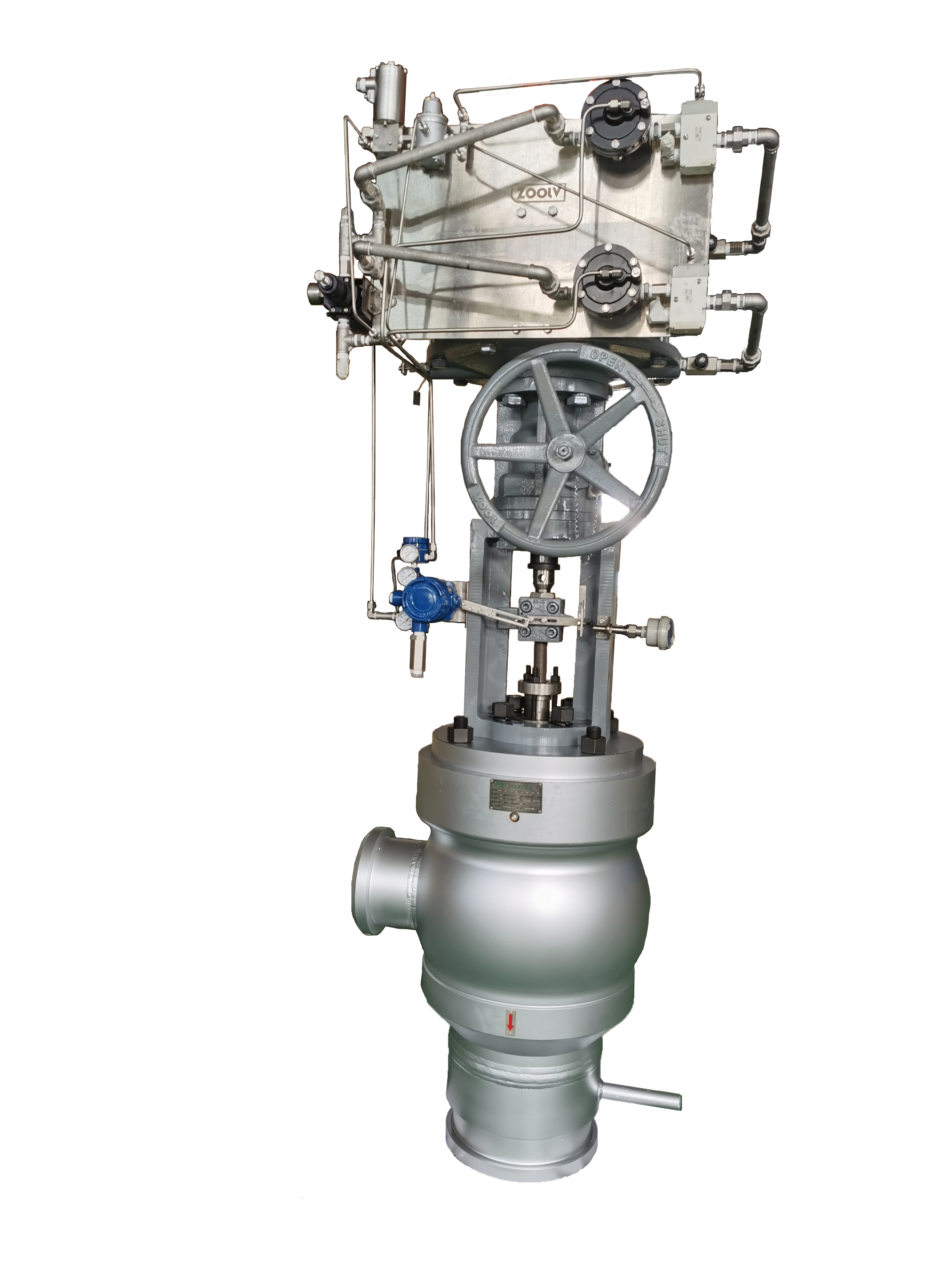

● Pressure Reducing and Desuperheating

● Valve outlet with multiple spring load back pressure nozzles or venturi nozzles

● Control Downstream temperature and pressure

● ls equipped with pneumatic or hydraulic actuator, Quick open

● ls applied to steam turbine bypass, Power station

● Body size: Steam inlet 3 "~16" (i.e. DN80~DN400) steam outlet 6 "~28" (i.e. DN150~DN700); Desuperheating water 1 "~3" (i.e. DN25~DN80)

● Body rating: Steam ANSI 600 #, 900 #, 1500 #, 2500 #; Desuperheating water ANSI 300 #, 600 #, 900 #, 1500#

● Connection: Welded BW, Flanged RF, RTJ

● Body Material: A217-WC6、WC9、C12A，A182-F11、F22、F91 etc.

● Leakage: CLASS IV、V
